1999-2000 Photos - Passageways and Vertical Tower

starting to build the power plant arch

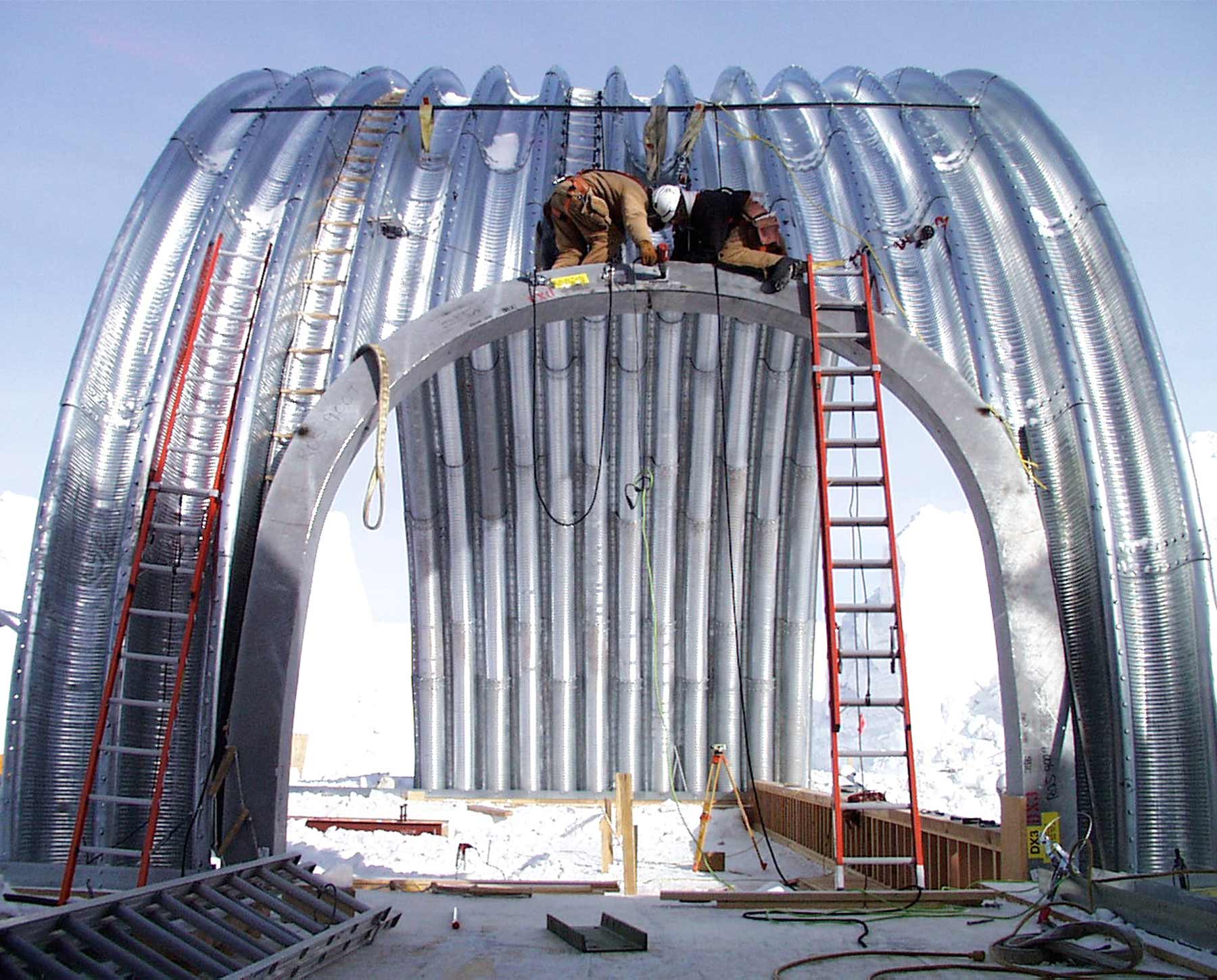

Here the first section of the power plant arch (the northeast end) is being erected on 7 December 1999.

We're looking northwest from the garage/LO side through the power plant arch toward the still-uncut passage to the beer can stairs, which for some reason wasn't provided an opening by the shop. The passageway between the power plant and the beer can stairs is technically known on the drawings as "passageway #3 but I've never heard anyone call it that. Just like I rarely heard anyone calling the vertical tower anything but the "beer can." I'm thinking that folks are used to that by now. Uh, yeah, I'll get to the power plant construction photos someday soon (JL).

test erection of an arch section

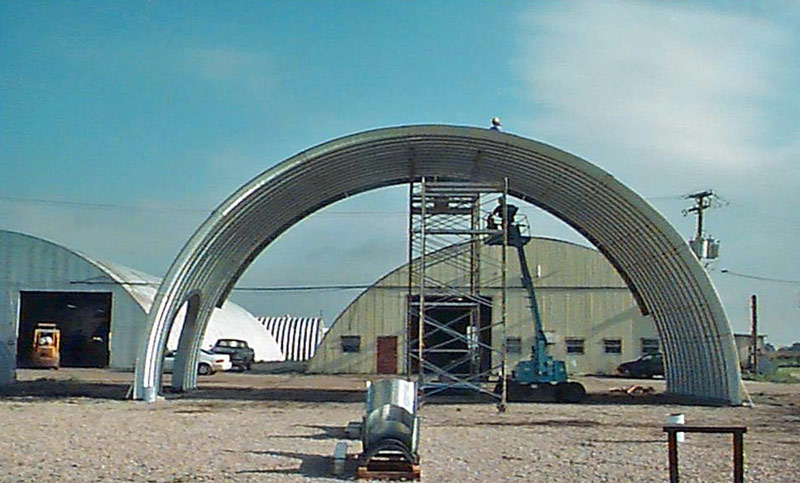

Note that the section of the arch at the top of this page was test-erected--I'm guessing at the fabricator's shop (C).
junction node connecting to the ice tunnels

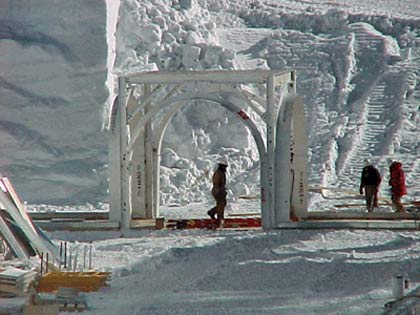

Here's the junction node just northwest of the power plant (and behind the as-yet-uncut side of the arch in the above photo). We're looking northeast (roughly upwind) so this side of the junction is now the exit from the ice tunnels; to the right is the power plant arch, to the left is the beer can, and straight ahead would be...uh...(FCA).
Remember, at the time all this was designed, there were plans for a "future sewage treatment and alternative energy arch" northeast of the power plant...
planned future construction

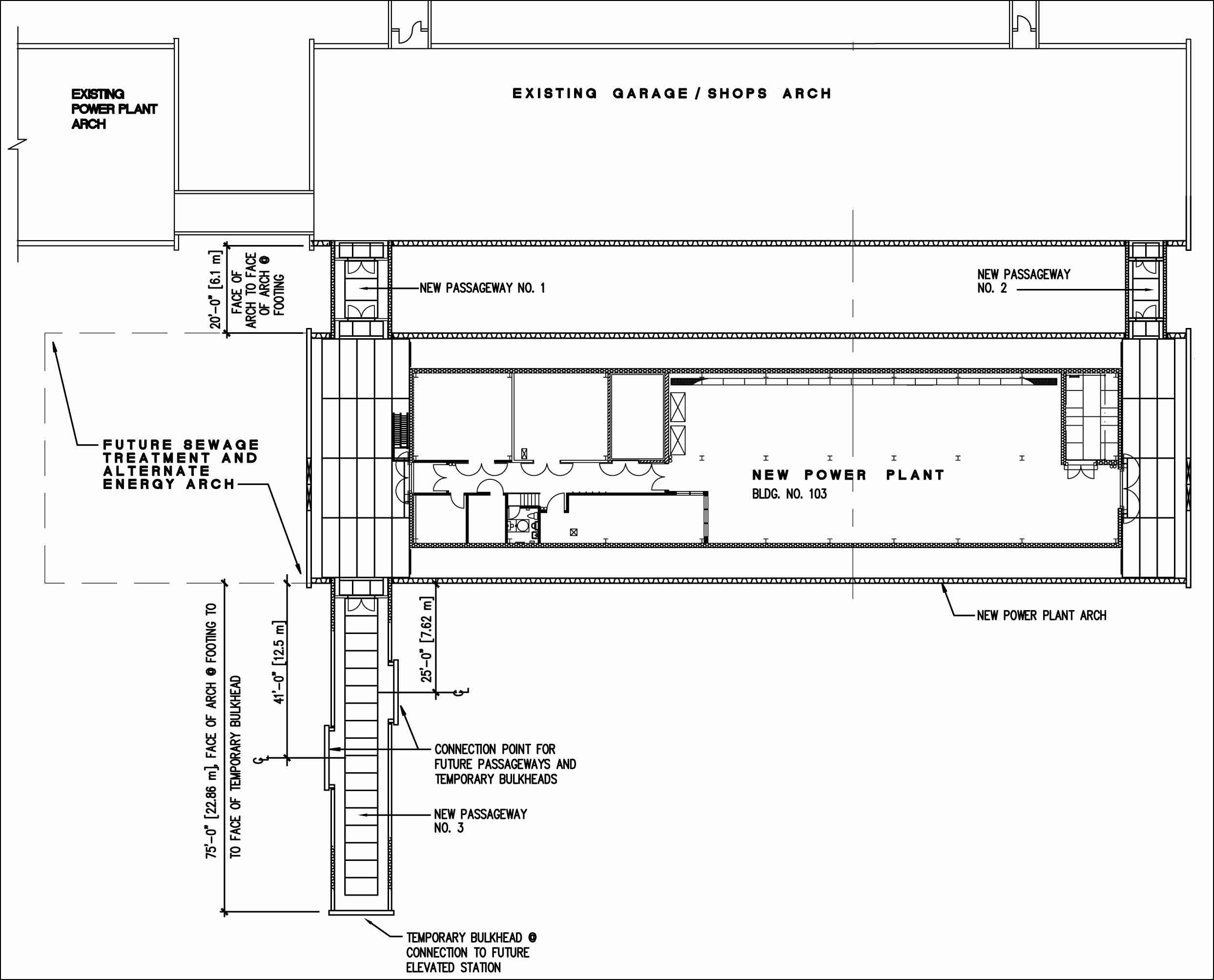

...as seen here in this drawing excerpt.
the beer can foundation being laid out

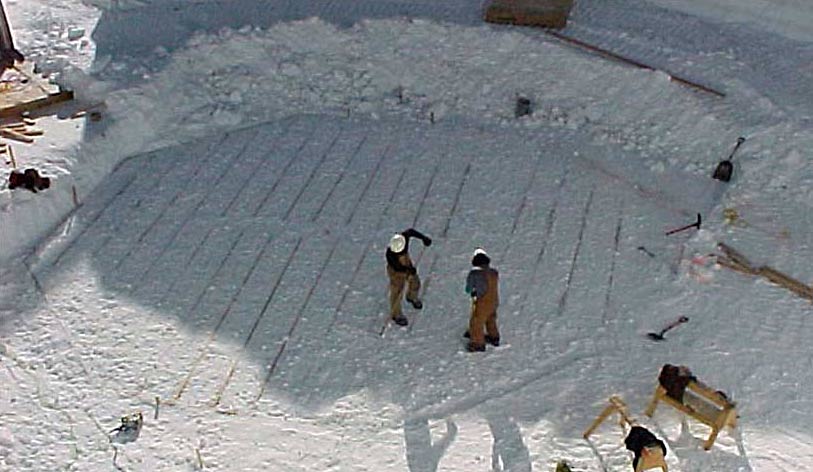

Meanwhile, the foundation of the beer can/stair tower was being laid out (C)...
stair tower foundation

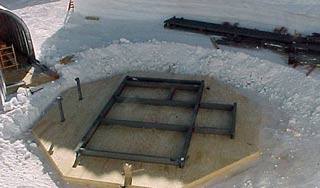

...and installed (C).
tunnel toward the beer can

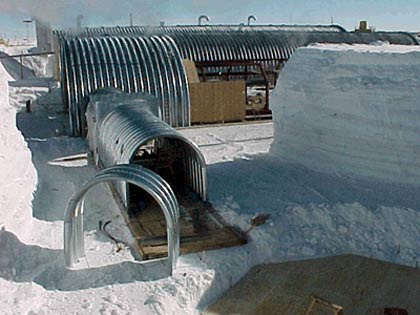

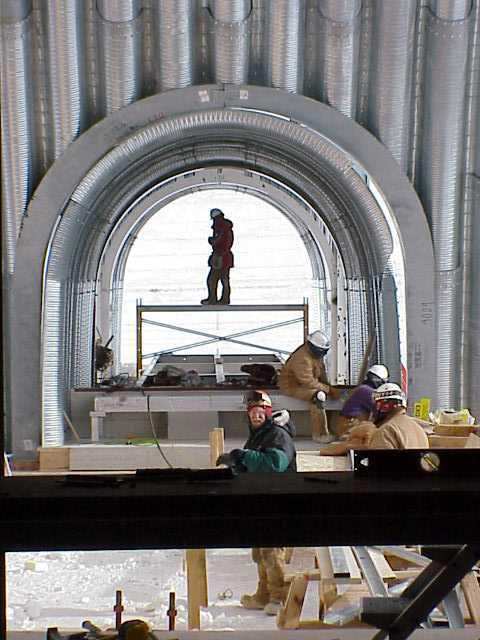

We're again looking in the same direction as the photo at the top of this page, but this time the opening has been cut in the power plant arch, and the first sections of the passage to the beer can have been installed (SK).
more of the arch tunnel between the power plant and the beer can

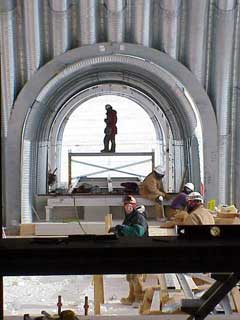

More tunnel construction toward the beer can foundation. Note that the junction node (pictured above right) is a 4-way, not as depicted in the above drawing (FCA).
stair tower foundation

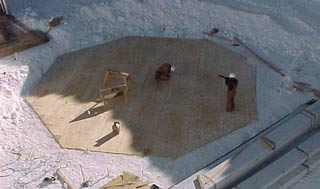

Here's the beginning of the stair tower foundation (C).
stair tower erection begins

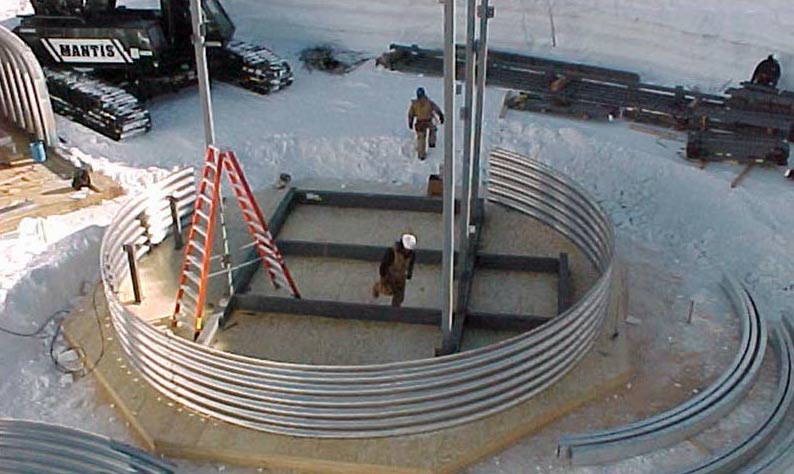

And the vertical erection of the stair tower and beer can begins (C).
bottom level of the stair tower

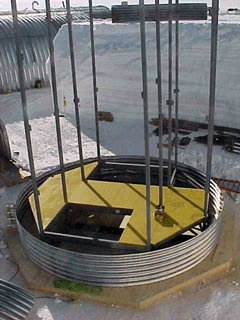

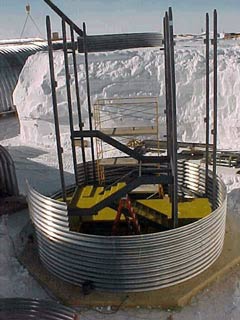

The first level of the stair tower goes up (FCA).
more of the stair tower



And here go some of the stairs (FCA).

Continue... we're not done yet.
