2007-08 Photos - Logistics Facility/Arch End of Summer

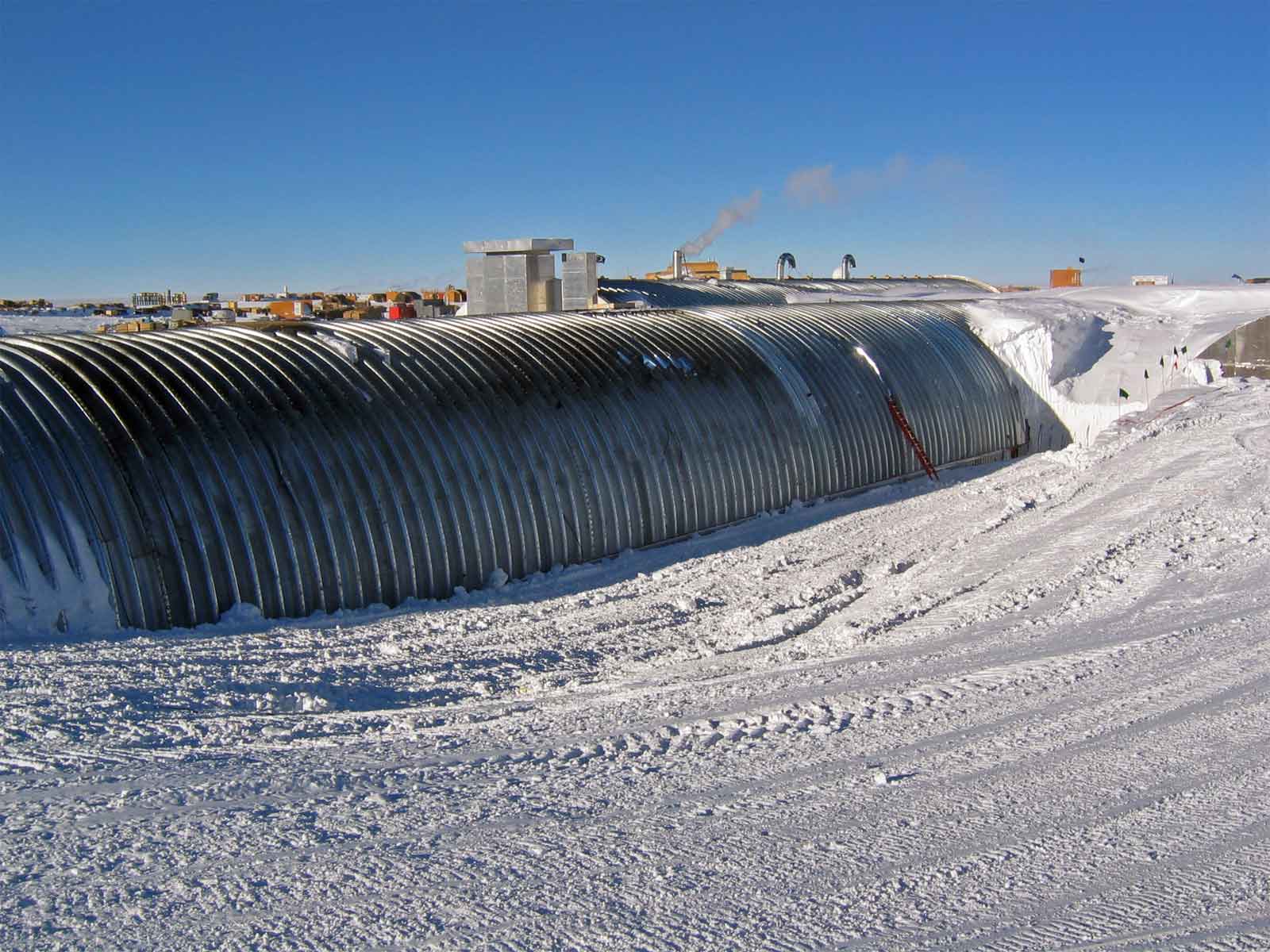

Let's start with a view of the front side of the arch, all put together...

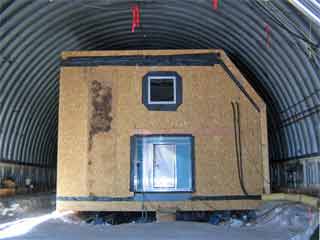

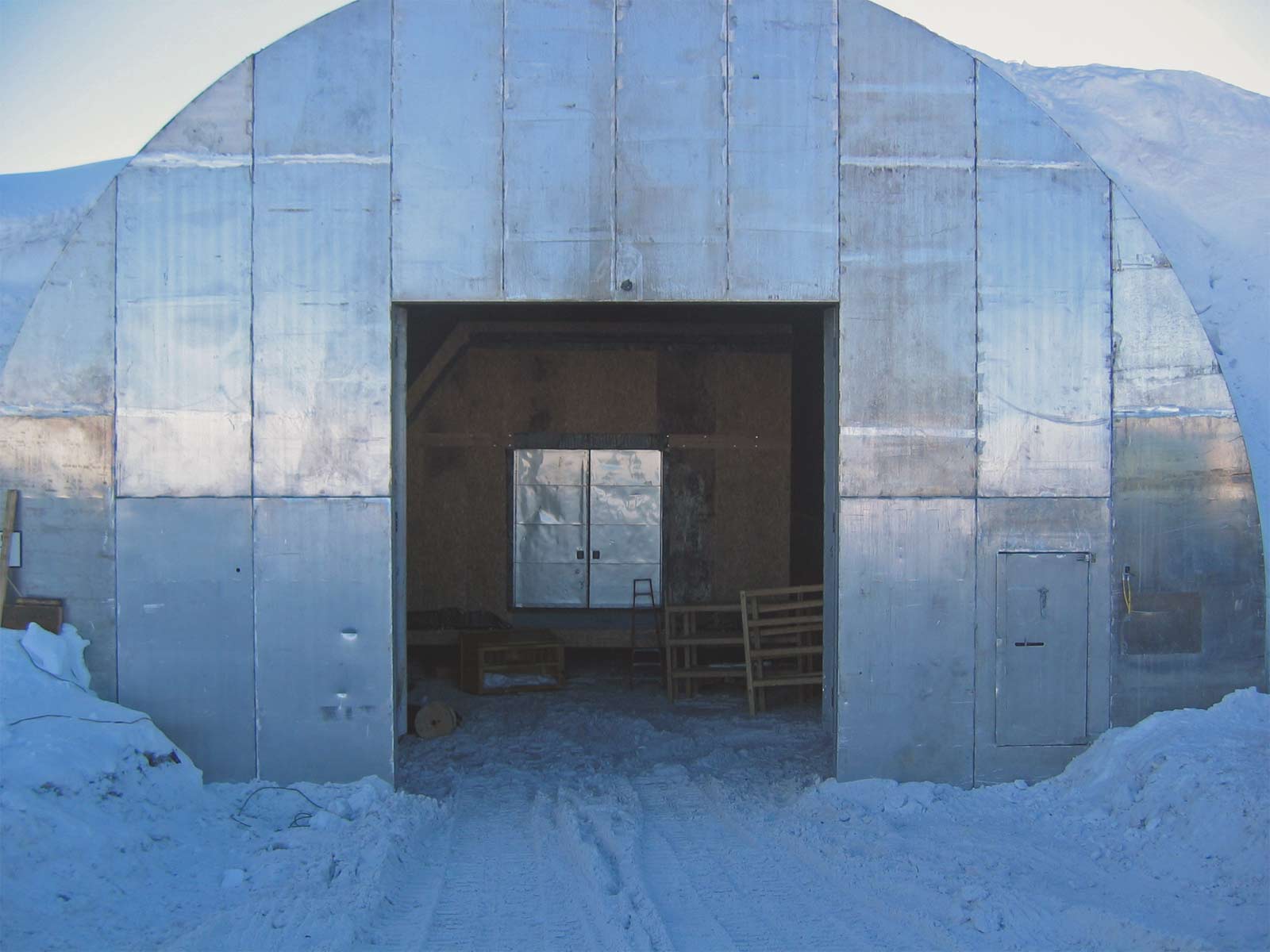

Here's the south end of the arch with the enclosed building inside.

Here's the north end of the structure. The entire arch gets a new floor deck level with the floor of the building.

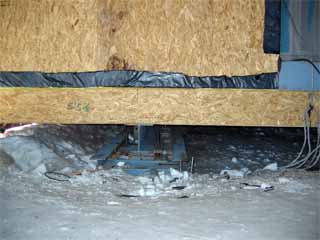

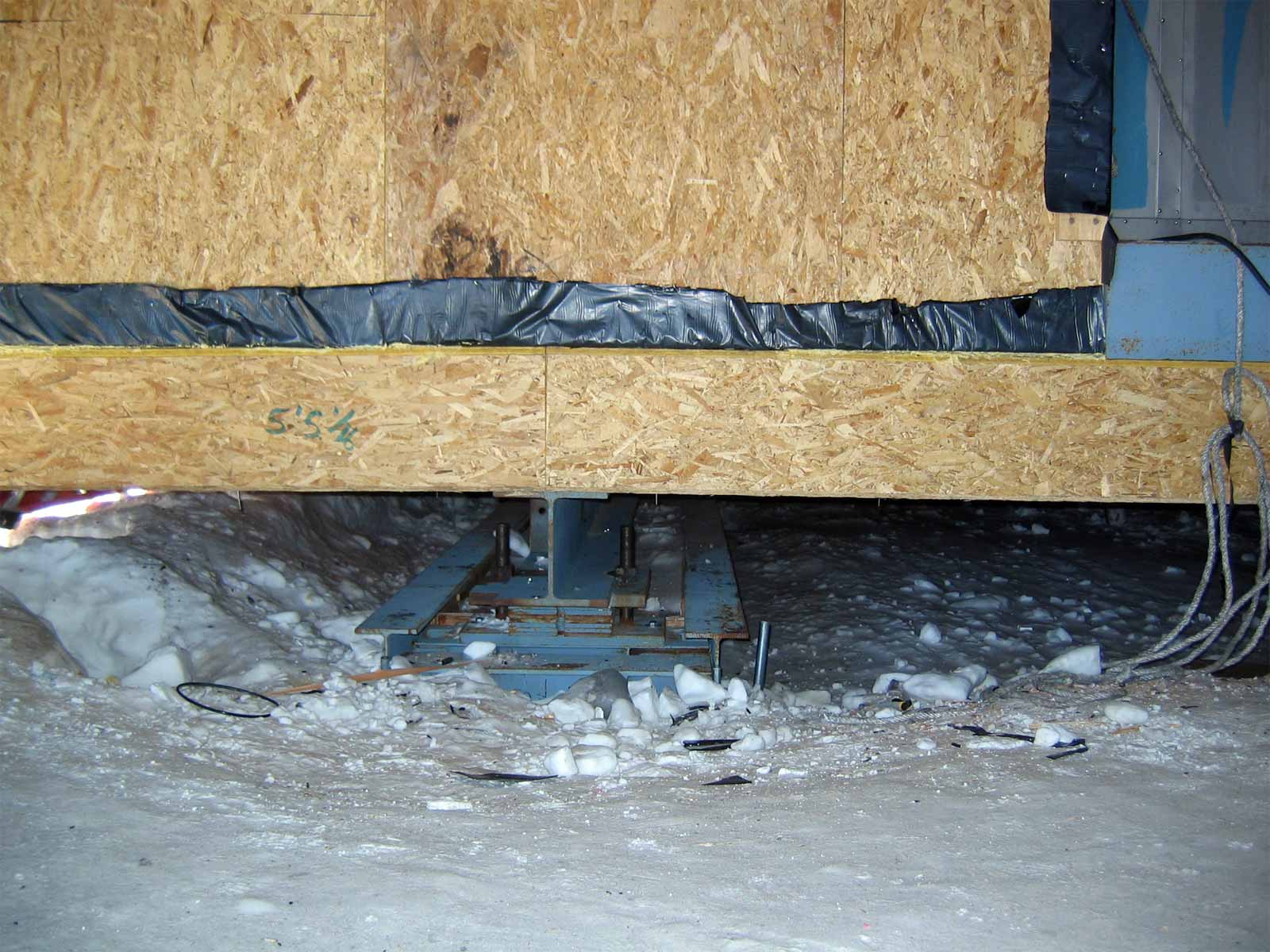

Here's a closeup look at one of the foundations/footing units
under the building--fairly complex, with shims and bolts.

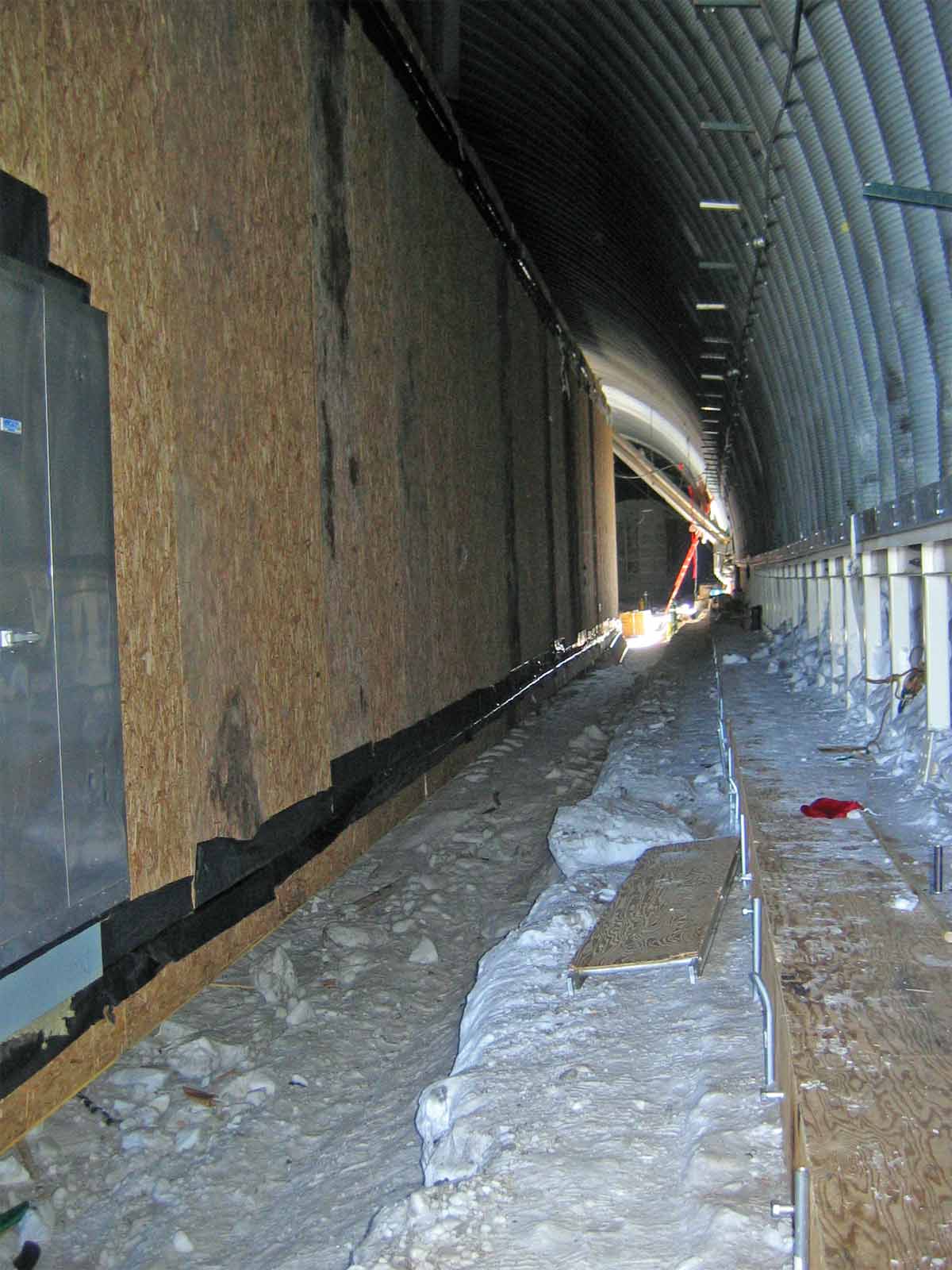

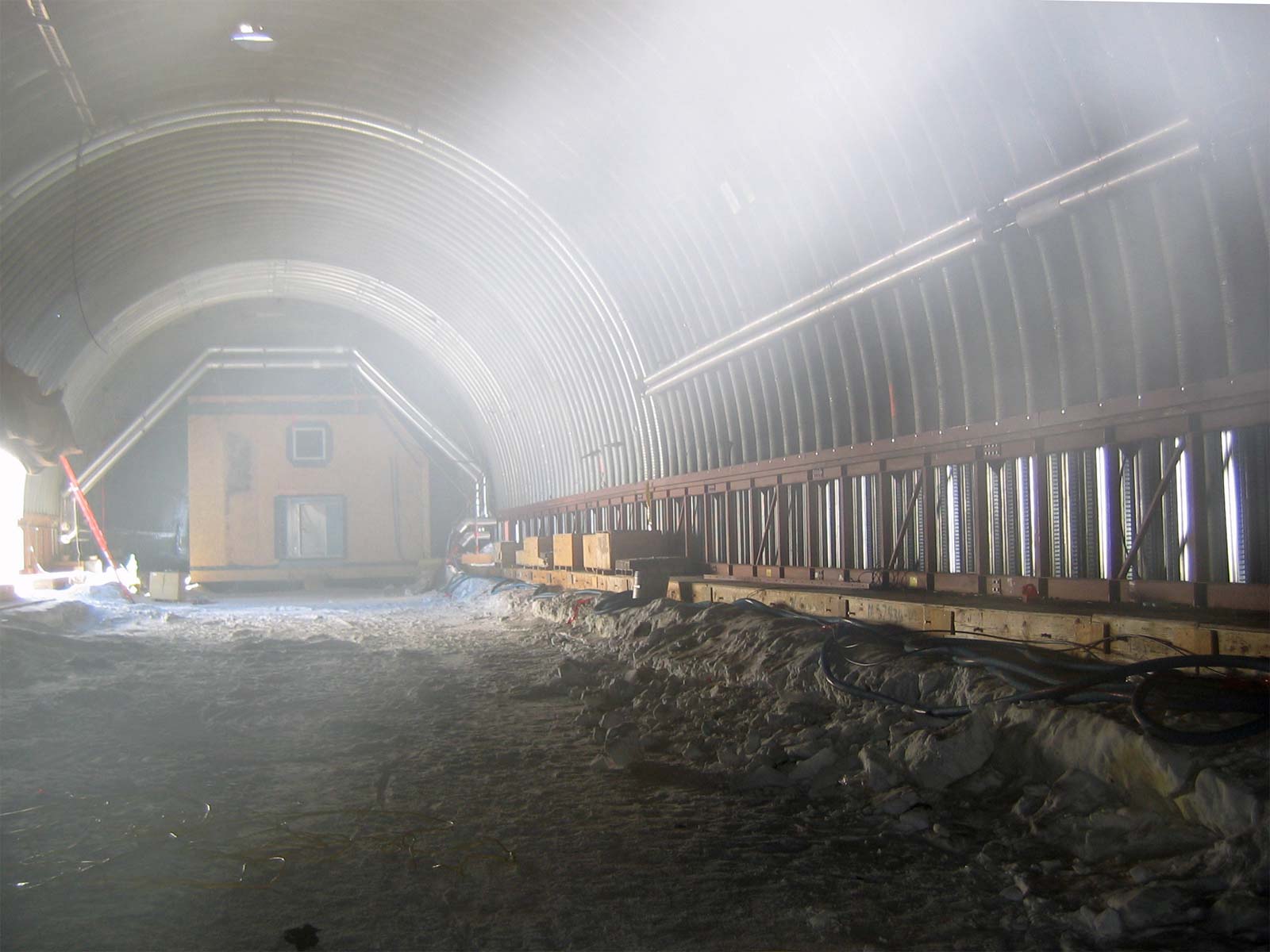

Stepping back a bit to show some of the future storage space.

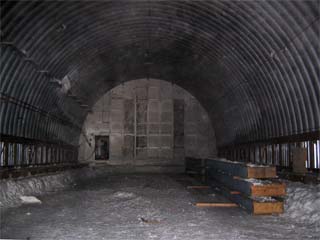

Looking toward the fuel arch end, some of the larger footing modules are staged here.

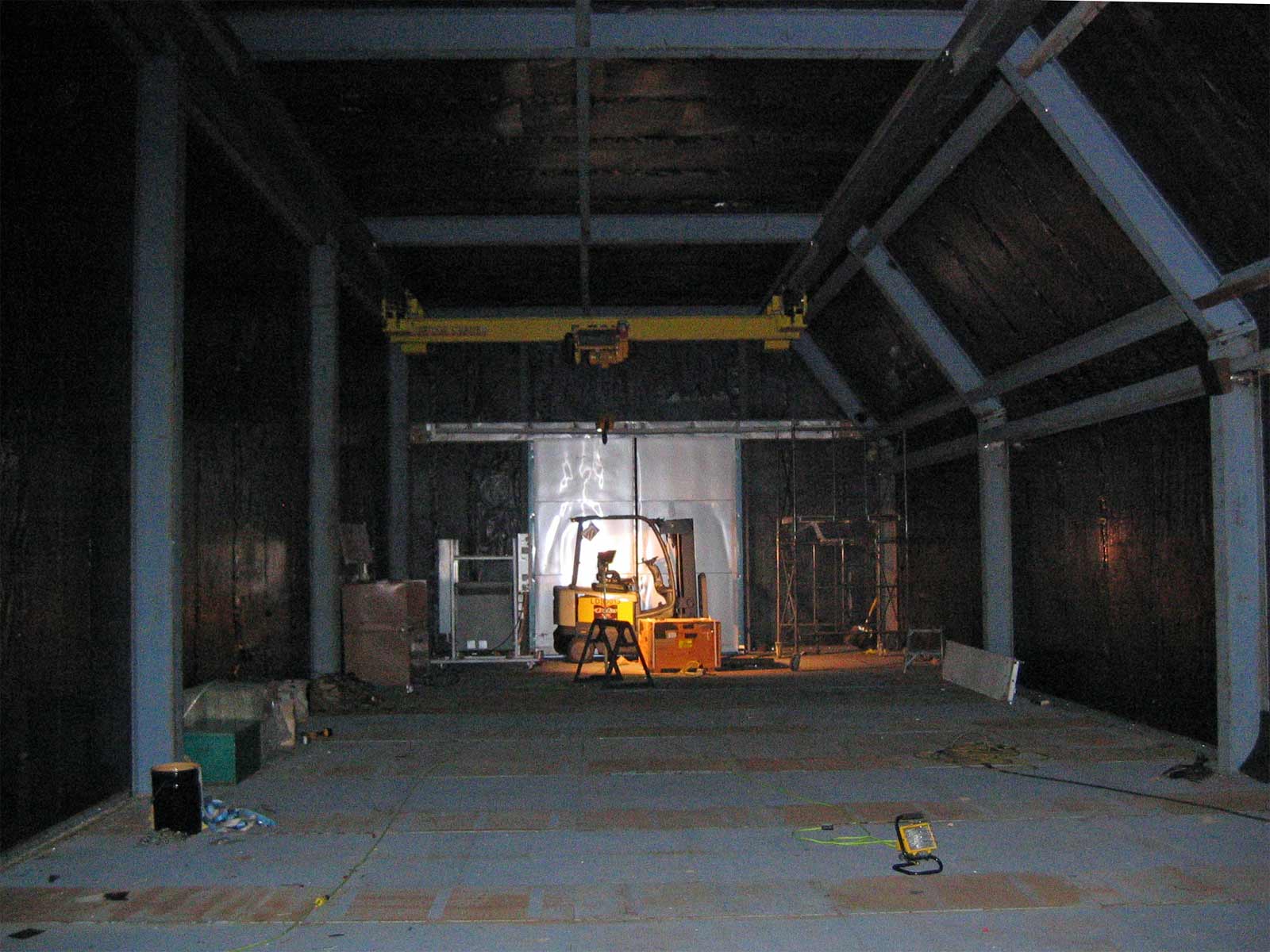

Inside the freshly heated building, complete with temporary fire alarm and all-call, ready for winter. Here we look south at the arch entrance end.

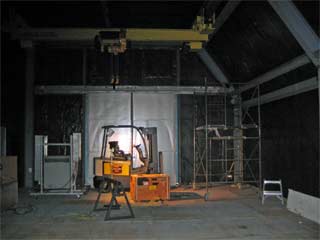

Here's a closer look at that brand new warehouse forklift that came down with me on the plane from ChCh to McM.

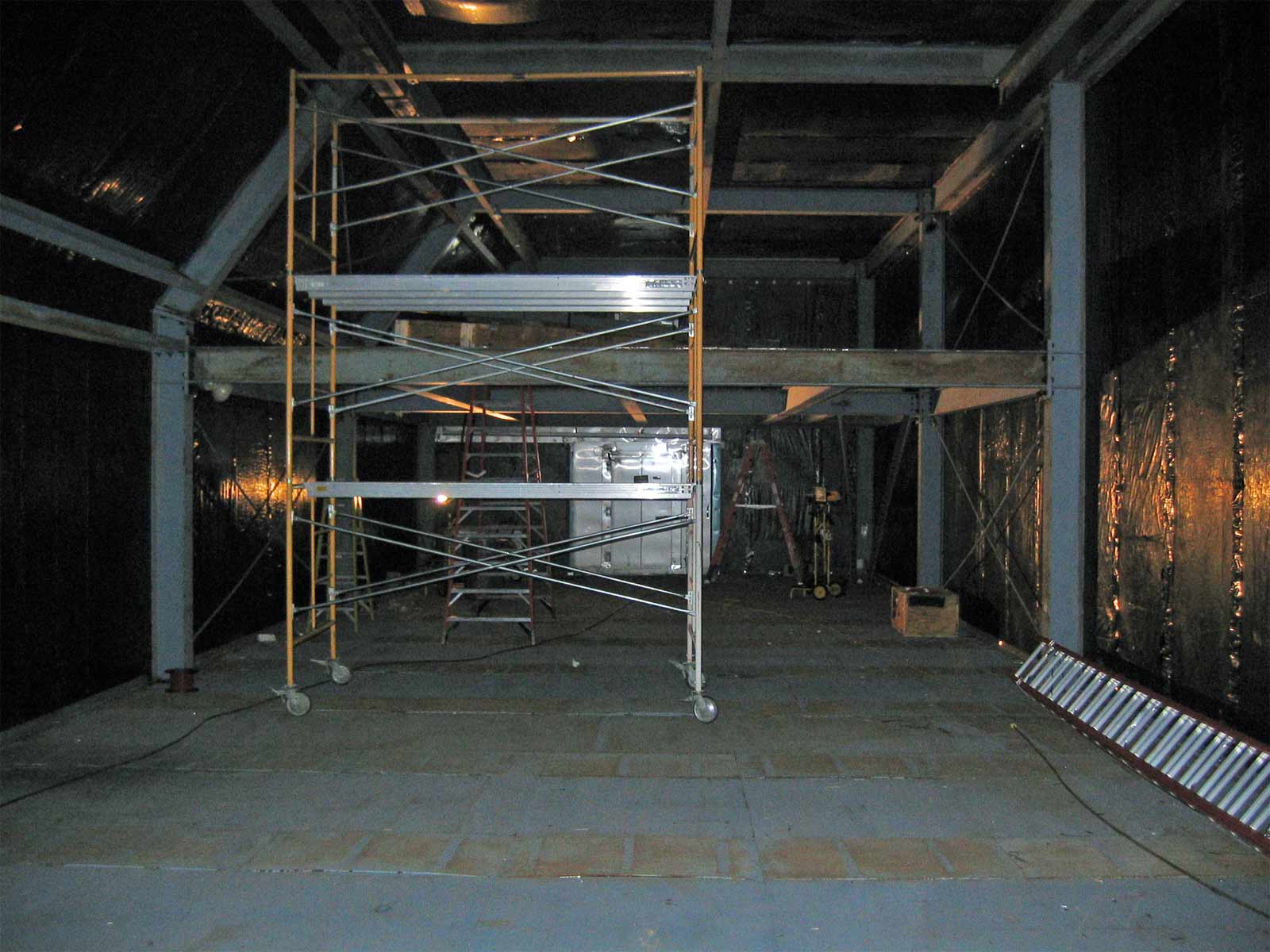

Looking the other way, this end of the building gets the second floor office area The stripes in the floor are the loose steel plates which need to get welded to the shop-fabricated floor modules.

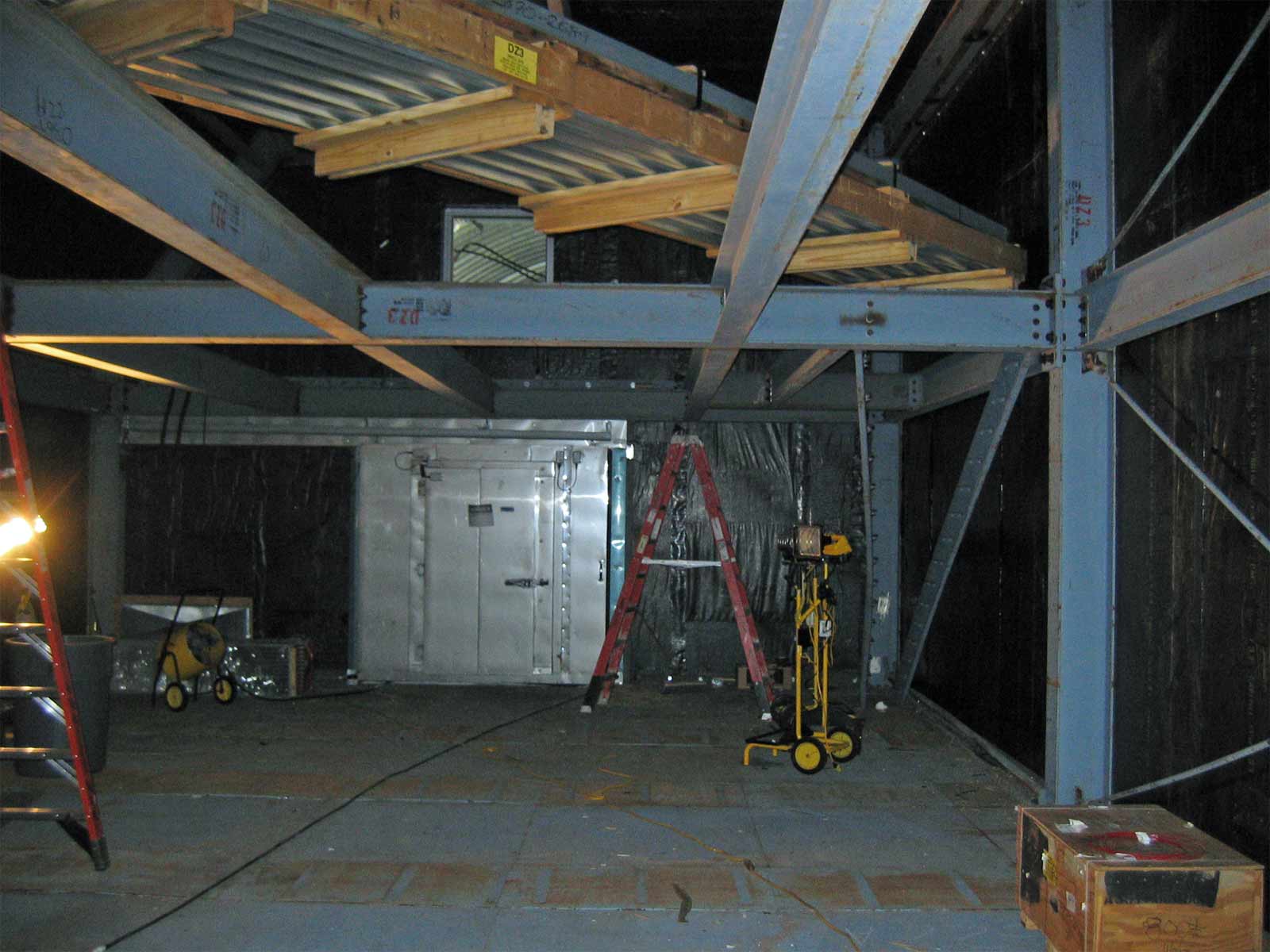

Moving closer, here's that fancy sliding door with a personnel door inside. The temporary glycol heater is on the floor at left.

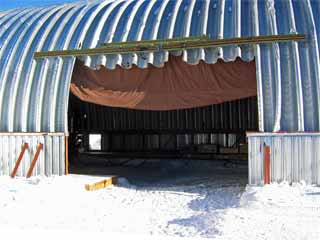

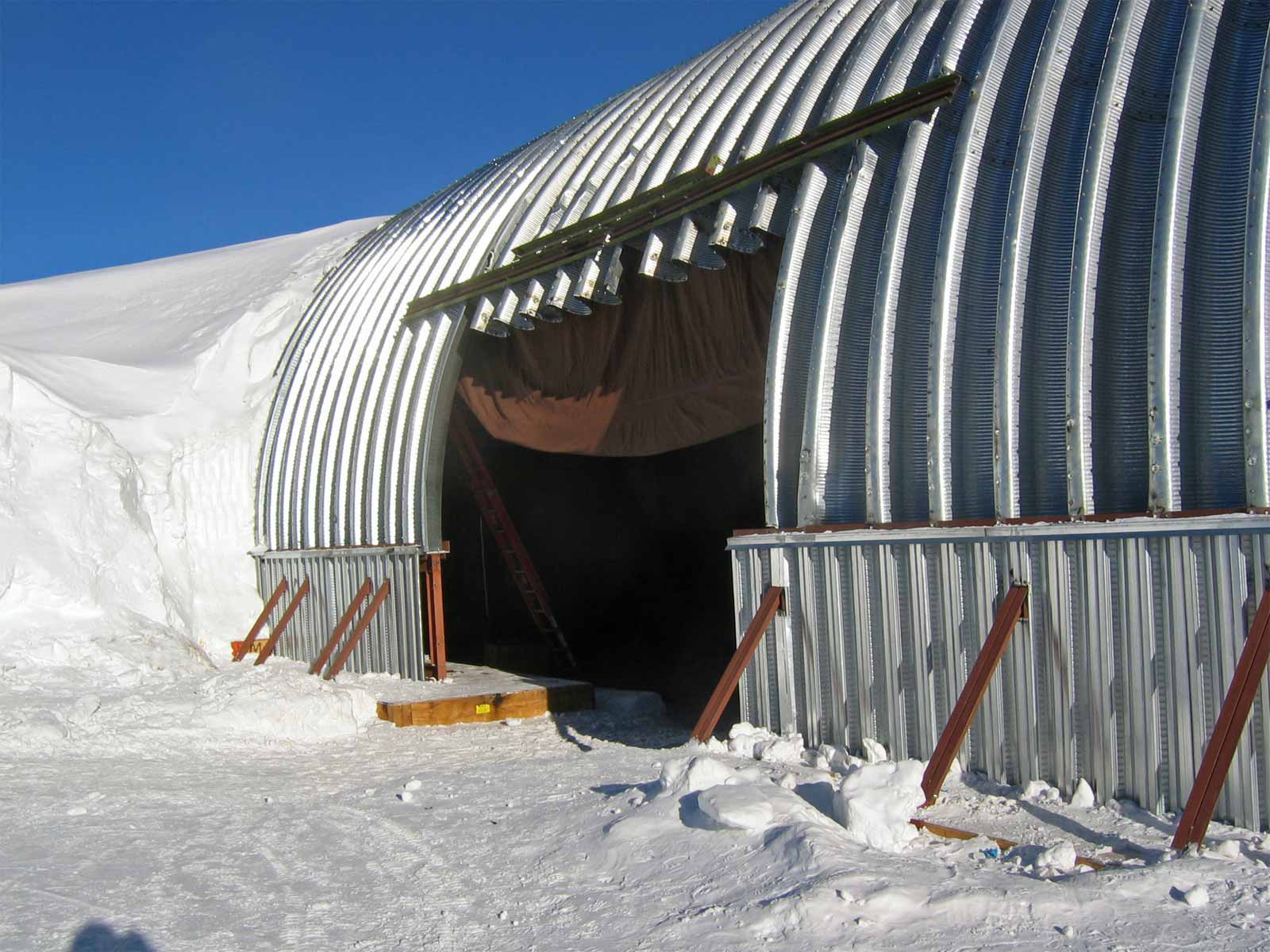

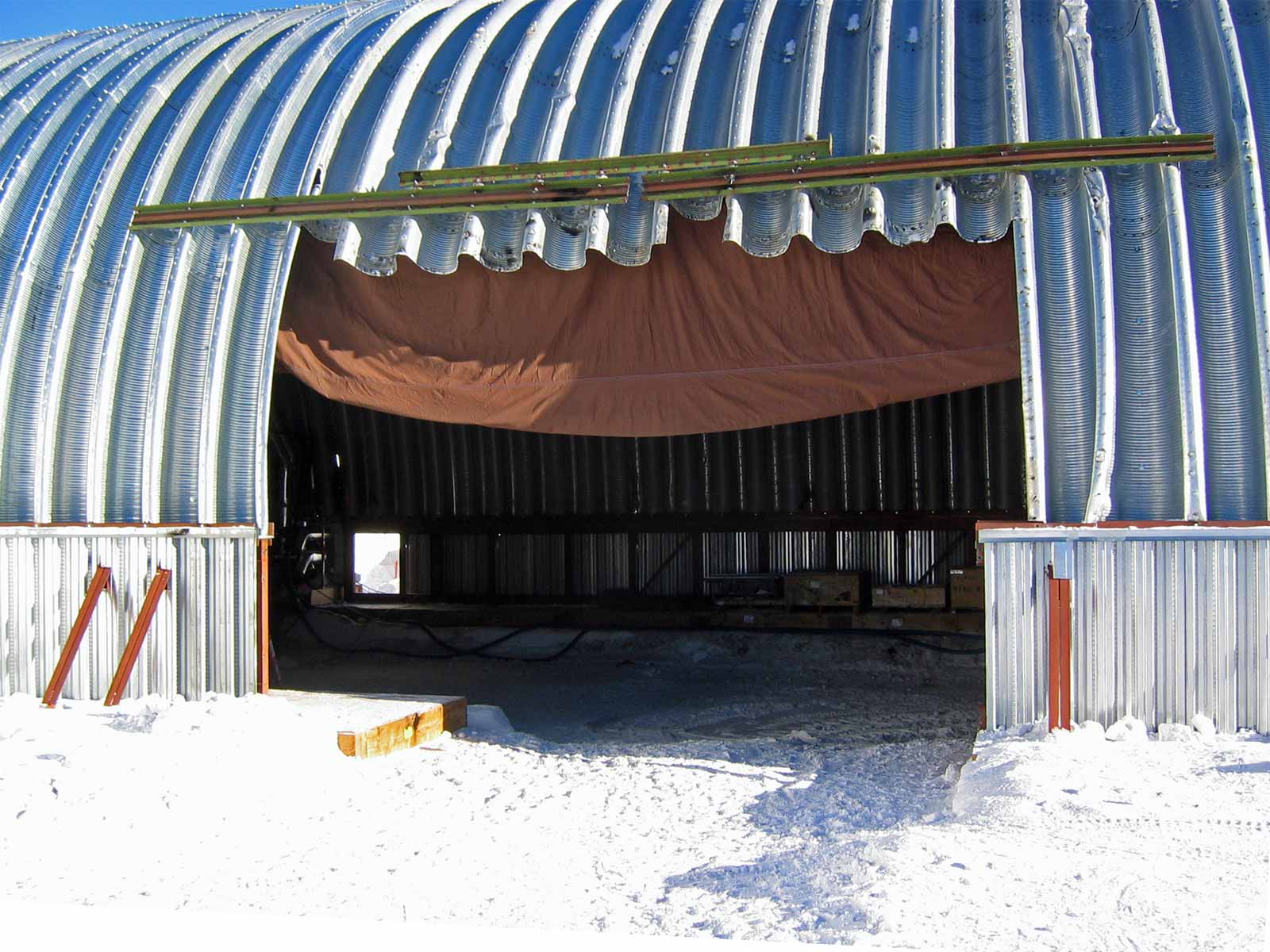

Stepping back outside the arch, here's the temporary entrance that allows access to the northern part of the arch during construction.

We'll have to figure out some way to keep snow from drifting in here...
