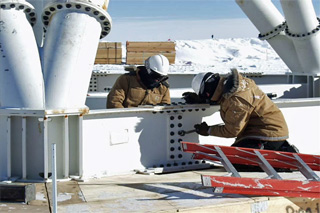

![boltup crew boltup crew at work](basebolting2.jpg) Here's the foundation boltup crew at work(JM)... |

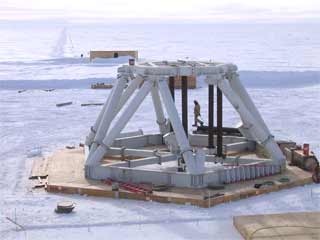

![hex bolts the completed base pedestal](pedestal2.jpg) The completed pedestal, 10 December . In the background, looks like some folks drove out to the VLF antenna (C). |

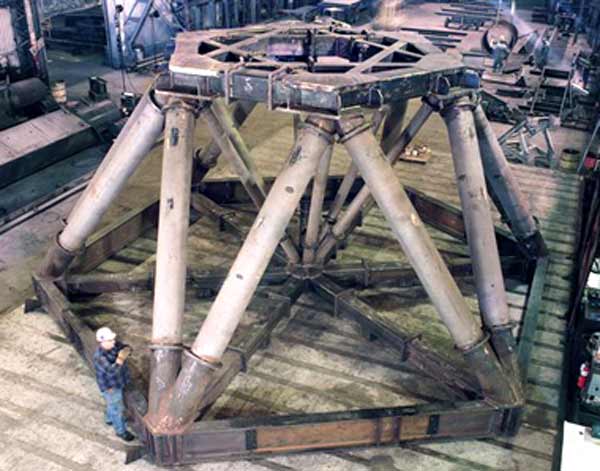

![more pipes the test erection at the fabricator's shop](testbuild2.jpg) By the way, the pedestal foundation was test assembled at the fabricator's shop earlier in the year, as seen here. Lots of heavy shop welding at skewed angles, and it was important that the fitup be right (SPT). |

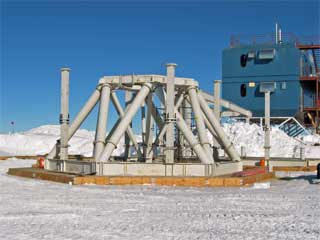

![putting up with it the pedestal erected at Pole](moresteel2.jpg) Back to Pole, here's a look at the foundation looking back at DSL as more steel is erected (C). |
![putting it out there pedestal and telescope/control room foundations](footings52.jpg) A more distant view of the pedestal and control room walkway foundations as of 21 December (C). |

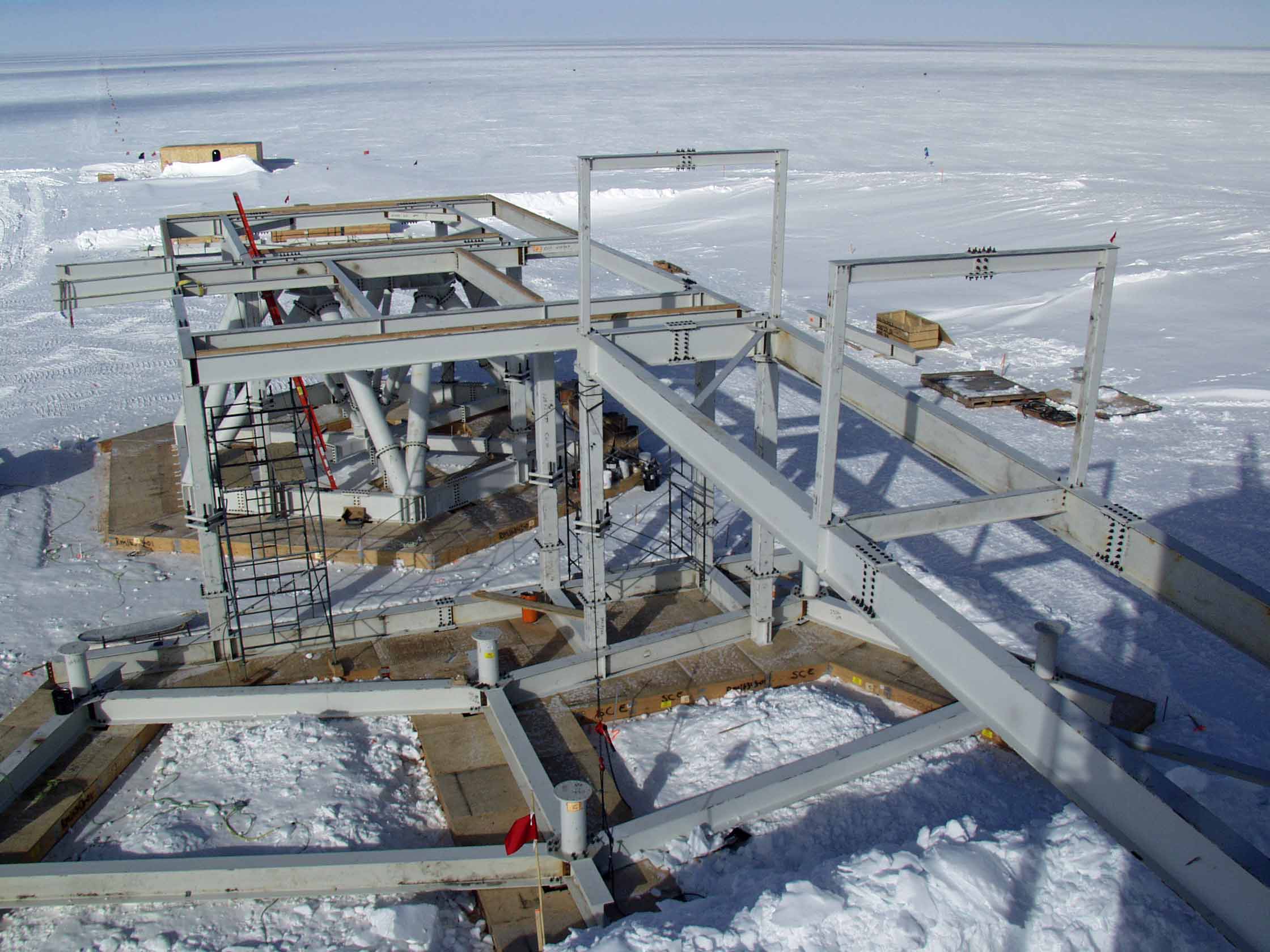

![extreme iron this framing as seen from the DSL roof](sptsteel2.jpg) The framing as seen from the DSL roof. Some of the foundations for the ground shield are also visible (JM). |

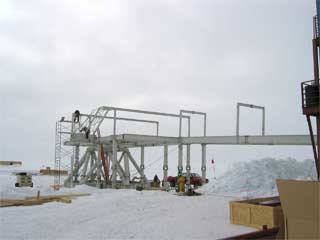

![frame up First floor framing](up2.jpg) Next, going up with the first floor framing (C). |

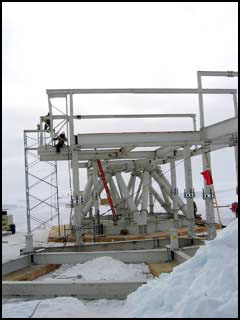

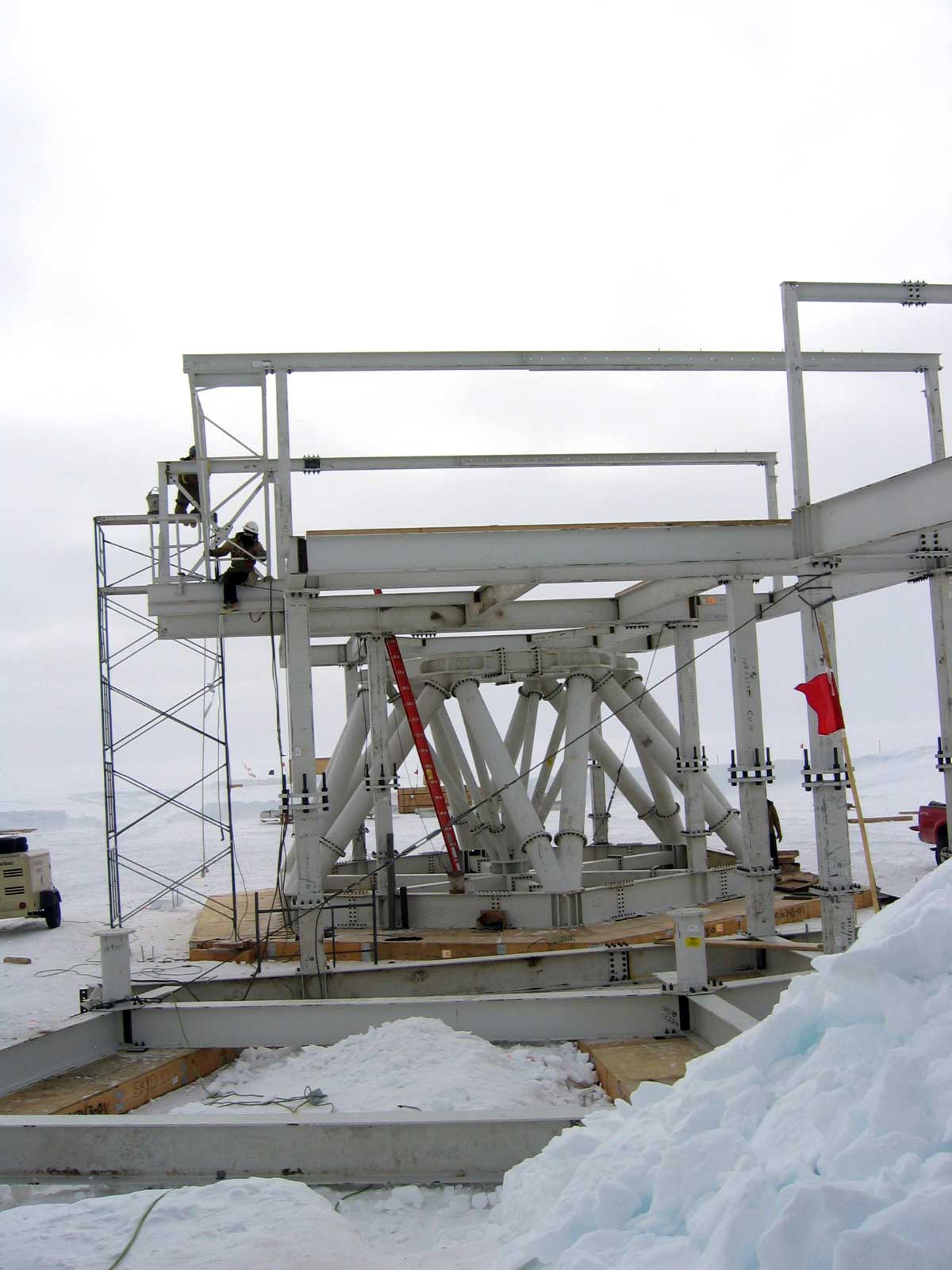

![erection A closer view of the first floor framing](scaffold2.jpg)
A closer view. This was happening on 27 December (C). |

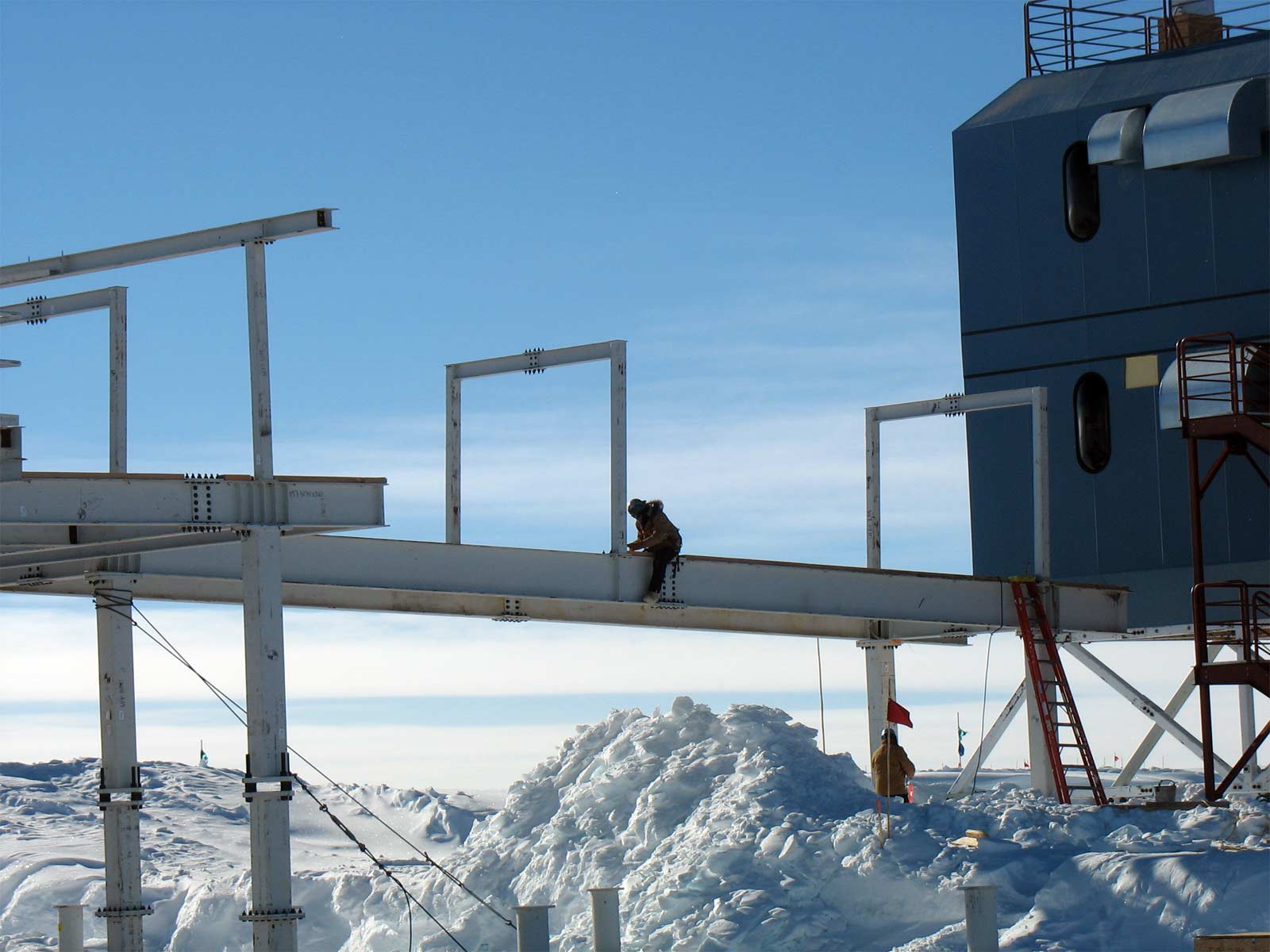

![walk between walk between](sptrechelle2.jpg) Looking the other way at the walkway framing (RP). |

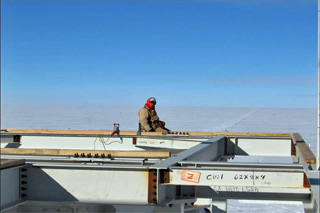

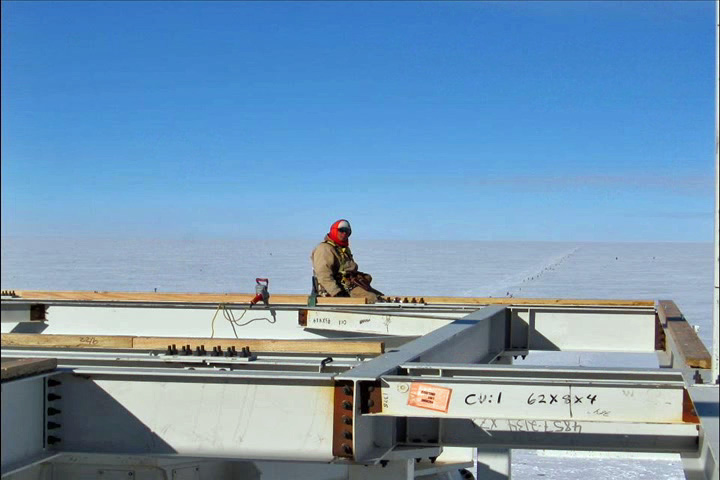

![underfloor stuff underfloor stuff](framing2.jpg) .Putting down nailers for the control room structure (CD). |

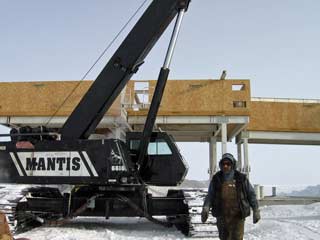

![and here's Froggy! Froggy is rigging these panels](froggy2.jpg) 22 Jauary...many of the panels are installed, with help from Froggy (CB). |

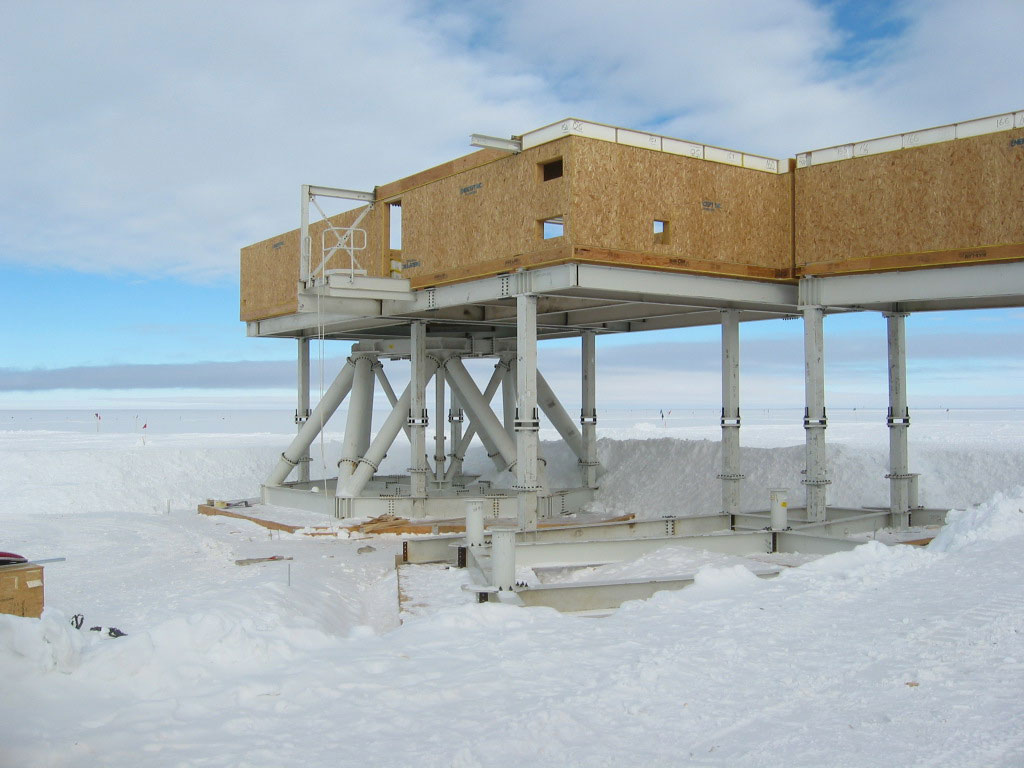

![walls wall framing for the SPT structure](fronta2.jpg) A bit later, the walls are up (BM). |
![cantilever cantilever](juncture2.jpg)

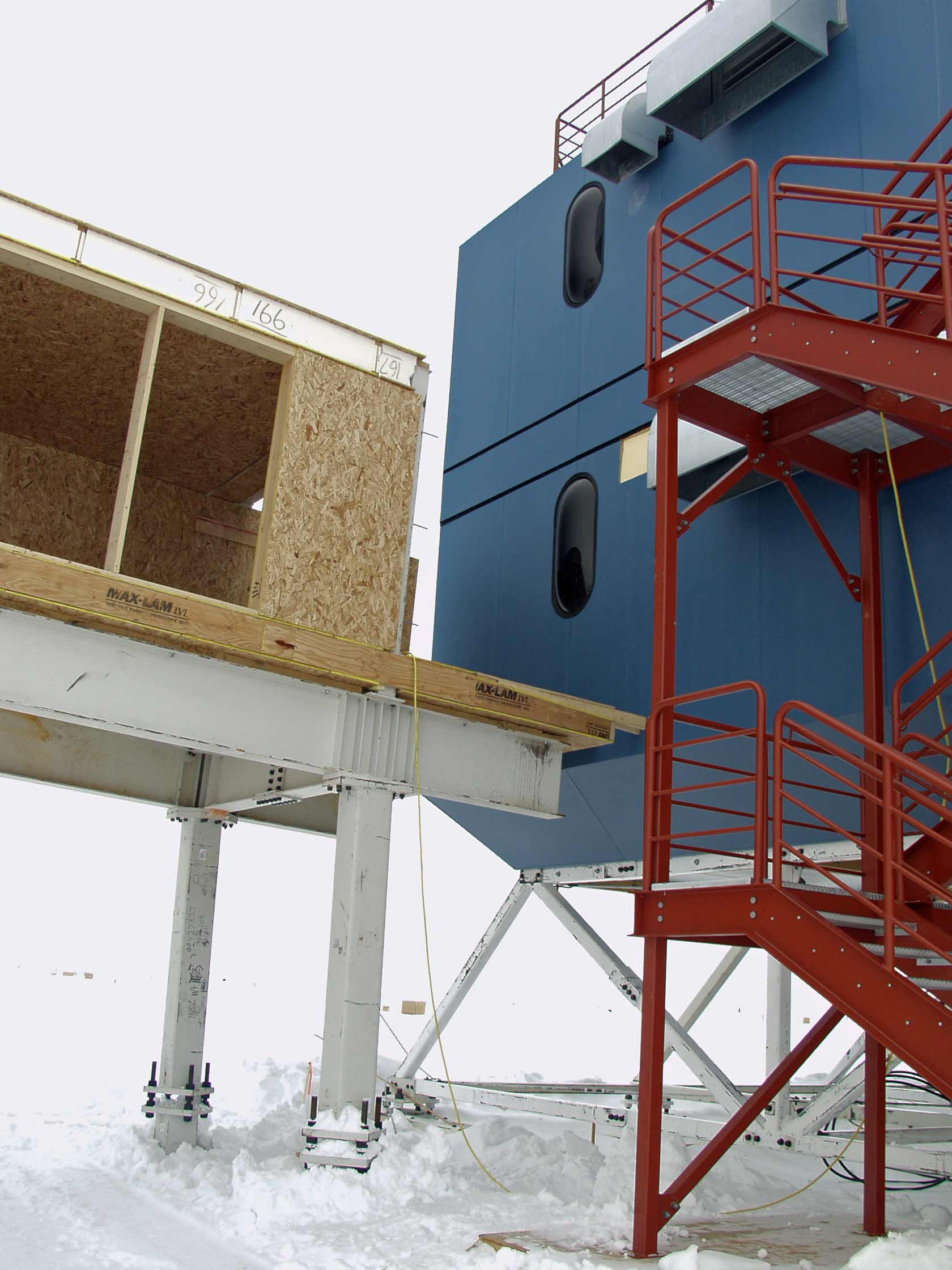

The walkway at the juncture with DSL, before the juncture was made (JM). |

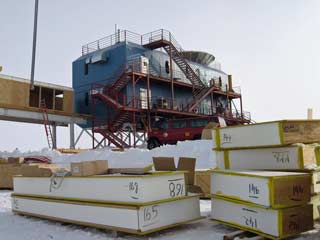

![foaming at Pole Wall panels still to be installed](panels2.jpg) A few more of the SIP panels waiting to be installed (CB). |

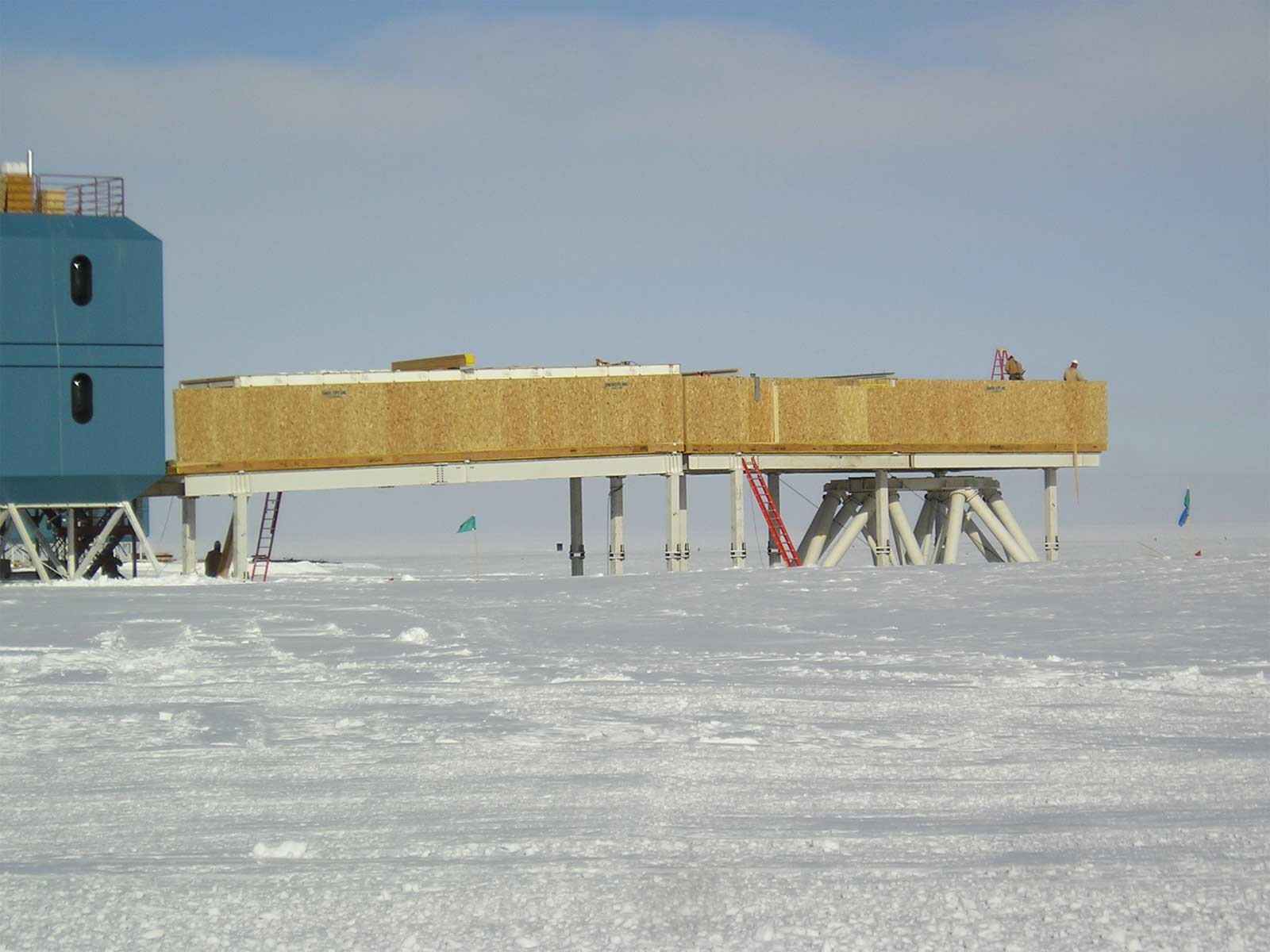

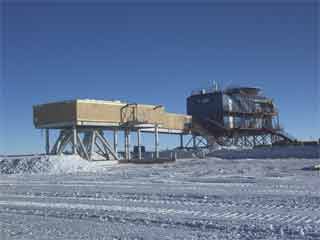

![the back side of the SPT structure and connecting link walls again](sptnorthjay2.jpg) The scene from the other side (JB). |

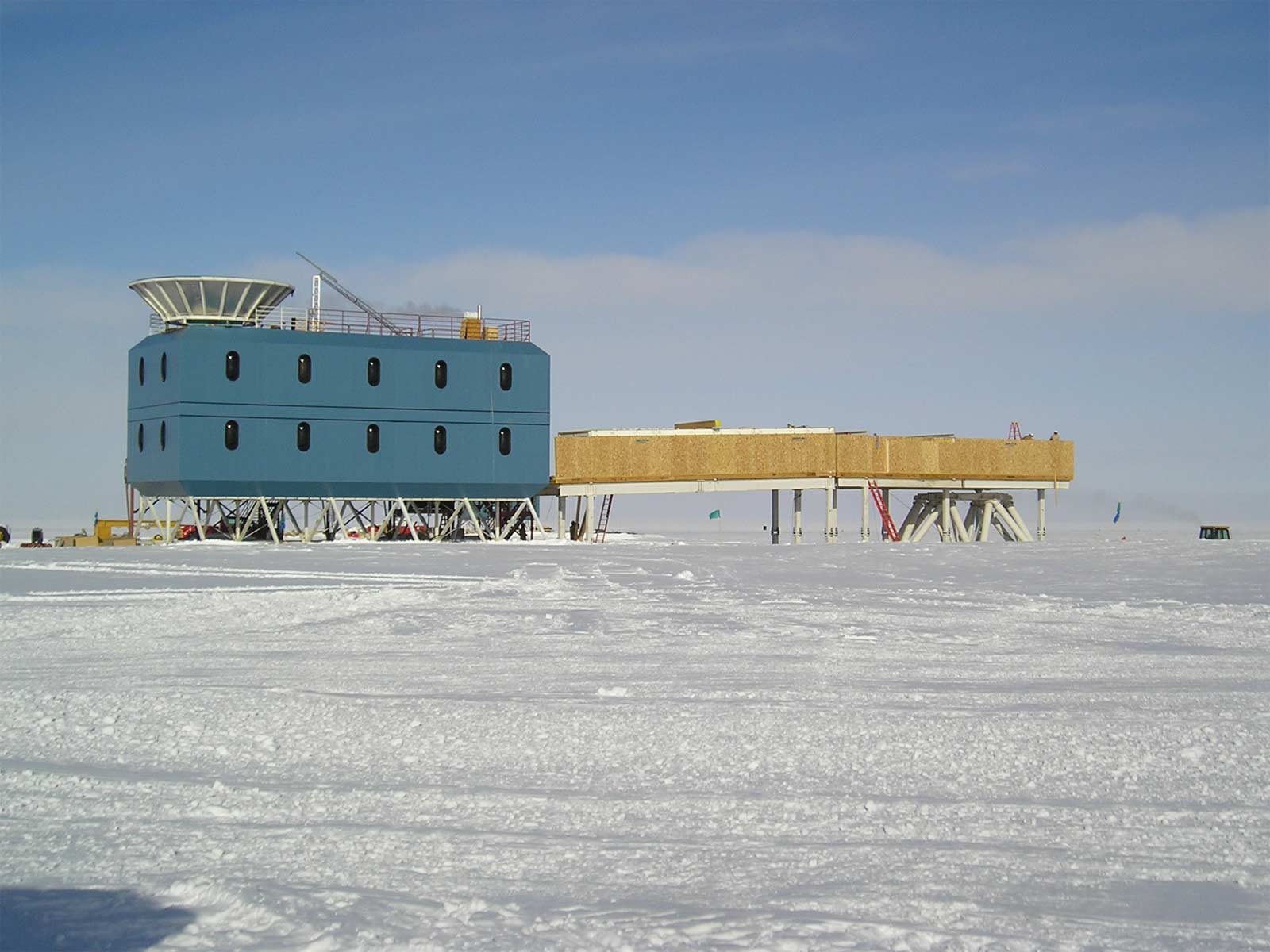

![DSL, the SPT structure, and the new BICEP shield dishing it](sptbicep2.jpg) Another view from a bit further back, this shows the new BICEP shield on top of DSL (JB). |
![the hole thing precut roof panels](roofhole2.jpg) Toward the end of the season, here are some of the roof panels, precut for the telescope mount (JM). |
|
Work would continue during the winter. Photo credits: Craig Bell (CB); Evan Bierman (EB); Jay Bollinger (JB); Cynthia Chiang (CC); Pole common drive photos (CD); Jerry Marty (JM); Bob Morse (BM); Vladimir Papitashvili (VP); Rechelle Parent (RP); the South Pole Telescope web site (SPT); Antony A. Stark (AAS); Carlton Walker (C) USAP photo library; Ki Won Yoon (KY). Thanks...
|
